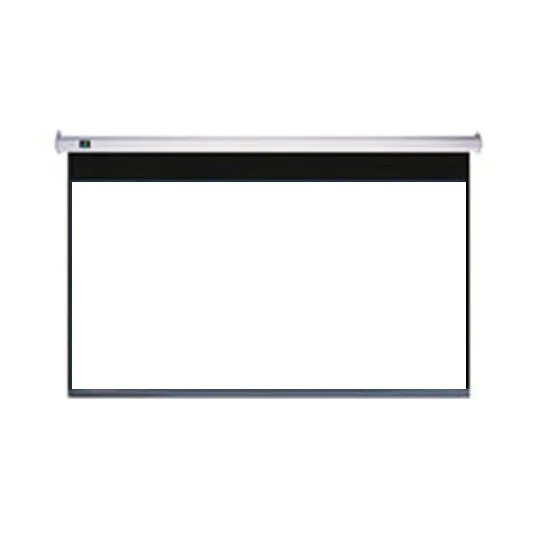

JK Standard Electric Screens -16:9
Electrically operated projection screens available in various sizes and aspect ratios
White powder coated steel cabinet, high quality matt white fabric.
Advanced tubular motor for quiet, fast operation.
End cap remote control receiver, ( sizes larger than 150" have external remote receiver )
IR with extended IR probe and RF remote
12 volt trigger @ RS232.
Mounting brackets & fastners & remote cradle.
Aspect ratios available : 4:3, 16:9 and 16:10
Specifications:
| Format | Diag. Size (inch) | Viewing area W x H (mm) | Case Length (mm) | Total Height (mm) | Black Drop (mm) | Packing Size (mm) LxWxH | Gross Weight (kg) |
|
16:9 |
92” | 2030 x 1140 | 2300 | 1760 | 450 | 2565 x 175 x 130 | 11 |
|
|
106” | 2345 x 1320 | 2610 | 1890 | 400 | 2880 x 175 x 130 | 12.5 |
|
|
119” | 2635 x 1480 | 2895 | 1960 | 300 | 3160 x 175 x 130 | 14 |
|
|
133” | 2950 x 1655 | 3220 | 2010 | 150 | 3450 x 190 x 145 | 23.5 |
| 150” | 3320 x 1780 | 3590 | 2150 | 100 | 3830 x 190 x 145 | 26.5 | |
| 173” | 3830 x 2154 | 4120 | 2454 | 100 | 4340 x 195 x 190 | 44 | |
| 196” | 4339 x 2440 | 4629 | 4629 | 100 | 4850 x 195 x 190 | 50.5 |
