Name: PNEUMATIC BRAD NAILER KAYMO PRO-18G50V3
SKU: 1447642

PNEUMATIC BRAD NAILER KAYMO PRO-18G50V3

$ 58.40

$ 75.92

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

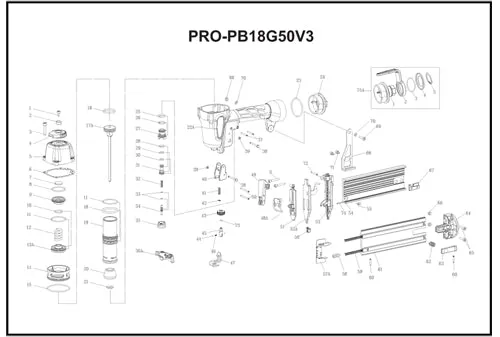

Blow Up

Spares

		TOOL MODEL:	PRO-PB18G50V3					REV.6TH JANUARY2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		30104080866	Hex.Soc.Hd.Bolt	30104080566	46	FMS	20771630000	Adjusting Spring
2	FMS	21030000001	Bushing, Deflector		47		22281480001	Contact Trip , Upper
3	FMS	30104200866	Hex.Soc.Hd.Bolt	30104200566	49		22943690215	Latch Cap
4	FMS	21030010015	Deflector, Exhaust		50		30803300001	Pin
5		210300201XX	Cap, Machined	210300203XX	51		22941410001	Door Spacer	22941410101
6	FMS	21030130000	Gasket, Cap		53		22941350066	Nose	22941350166
7	FMS	21030190017	Seal		54		21032050206	Magazine
8	FMS	30700123000	O-Ring		55	FMS	30505100166	Hex.Soc.Hd.Bolt
9	FMS	21030140016	Piston Stopper		56		21461580015	Rubber Pad
10	FMS	30700125000	O-Ring		58		21802940216	Spring Lock
11	FMS	30700120000	O-Ring		59	FMS	20142210001	Spring
12	FMS	21030160000	Spring		60	FMS	30803100001	Pin
14	FMS	21030340116	Cylinder Spacer		61		22942200106	Magazine Cover
15	FMS	30700044000	O-Ring		62		20032330001	Spring
16	FMS	30700119000	O-Ring		63	FMS	20032280066	Latch
18	FMS	30700013000	O-Ring		64	FMS	21032180015	Magazine Cap
19		21030350200	Cylinder		65		30104160166	Hex.Soc.Hd.Bolt
20	FMS	21030470115	Bumper		66	FMS	30604070001	Locknut
21	FMS	21030480101	Driver Guide		67		20032220101	Magazine Cover Stopper	20032220201
23	FMS	30700185000	O-Ring		68		21032170066	Bracket
24		207707X02XX	End Cap	207707X04XX	69		30104180166	Hex.Soc.Hd.Bolt
25	FMS	30700079000	O-Ring		70	FMS	30900010001	Flat Washer
26	FMS	30700081000	O-Ring		71		30104080266	Hex.Soc.Hd.Bolt
27	FMS	20770900016	Valve		72		30803180001	Spring Pin
28	FMS	30700002000	O-Ring		73	FMS	30700136000	O-Ring
29	FMS	30700201000	O-Ring		74	FMS	21032060001	Nail Guide Liner
30	FMS	30700071000	O-Ring		13A	FMS	21030151316	Piston,Head Valve Assembly
31	FMS	20770910016	Valve Plunger		17A	FMS	21030461200	Driver Assembly	21030461500
32	FMS	20770960001	Spring		17A	FMS	21030461300	DRIVER ASSEMBLY NEW
33	FMS	30700080000	O-Ring	KFCBS00398	22A		208006024XX	Body Assembly	208006025XX
34		22220920100	Plunger		36A	FMS	22220952215	Trigger Assembly	22220952315
35	FMS	20770930016	Plunger Cap		48A		22941361101	SA, Door Latch	22941361201
37	FMS	30803240001	Spring Pin		52A		22941341101	Safety Lever Assembly	22941341201
38	FMS	20460890001	Pin Trigger		57A		22942131301	Pusher Assembly	22942131401
39	FMS	30700078000	Grommet		75A		20970832315	Belt Hook Assembly
40	FMS	22282840215	Guide, Contact Trip		75A-1		209707X02XX	End Cap	207707X04XX
41	FMS	21031490101	Spring, Safety		75A-2		20970830115	Belt Hook
42	FMS	31303000001	E-ring		75A-3	FMS	30700188000	O-Ring
43	FMS	20801600001	Adjusting Nut		75A-4		20970840001	Cover Belt Hook
44	FMS	31200200000	Ball,Steel		75A-5		33425000001	C-Ring
45	FMS	20801500101	Adjusting Post
